Shop light-duty, medium-duty, and heavy-duty livestock panels built for roping arenas, working pens, pastures, and everyday ranch use.
Built from galvanized steel for long-term durability and backed by FREE Nationwide Delivery.
From deer feeder panels and goat panels to heavy-duty cattle and horse panels, Red River Arenas has the right option for your setup.
Start with the panel strength that fits your setup, then choose the size and style that works best for your livestock, arena, or working pen.
✔ PDM and PG10 — Panels for Small Livestock
Best for deer feeders, goats, sheep, and other light containment applications.
✔ PEL and PL — Light Duty Panels
Good for entry-level arena use, portable setups, light livestock containment, and everyday ranch needs.
✔ PM and PMT — Medium Duty Panels
Built for regular use in roping arenas, round pens, and working pens where added strength matters.
✔ PEH, PH, and PHT — Heavy Duty Panels
Designed for serious cattle work, horse stalls, permanent pens, and high-pressure arena applications.
✔ PBT — Extreme Heavy Duty Panels
Built for rough stock, bulls, and the toughest livestock applications.
✔ Not Sure?
Most customers choose medium or heavy-duty panels for the best long-term value.
Start with your use, then choose the panel strength that fits your setup.
(Click on Image to Enlarge)

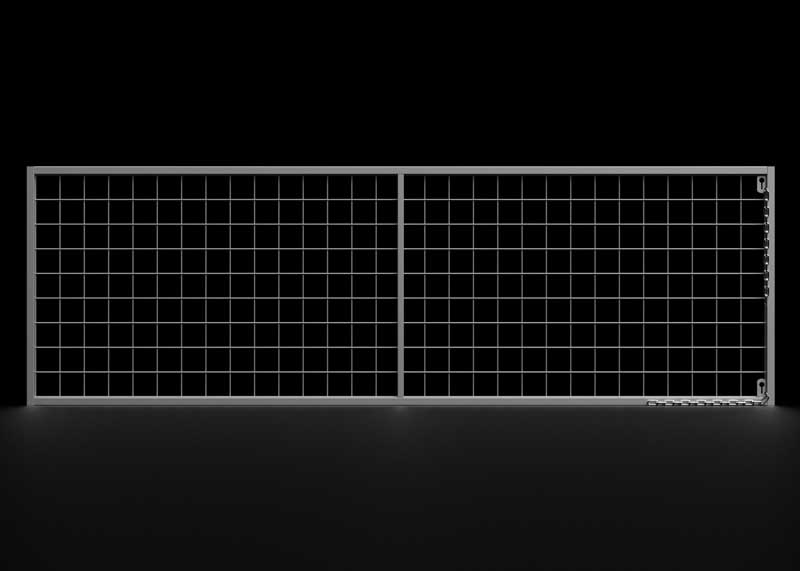

The PDM Series is a full wire panel designed for deer feeder pens, goats, pigs, and other small livestock. It helps keep cattle and hogs out while allowing smaller animals access where needed.
Height - 38.5"
Length - 10'
Legs - 1 1/4" square 16 gauge
2 Bars - 1-1/4" square 16 gauge saw cut bars
1 Brace - 1" square
Full 6 Gauge Cattle Panel 4x4 wire
Mud Leg - No
Approx. Weight - 48 lbs
Key Features - Galvanized, Light Duty Panel
Primary Use - Deer Feeder Panels, Goat Panels, and Small Livestock Containment
|
(Click on Images to Enlarge)

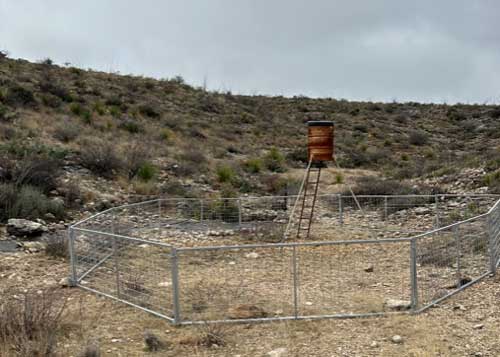

The PDM (Panel Deer Mesh) Series is also available in sets to make a 30' and 45' circle around deer feeders to keep cattle, hogs, and other varmits out. Deer feeders can be economically ordered with these deer feeder pens in a 400, 600, and 800 pound corn capacity.
|
(Click on Image to Enlarge)

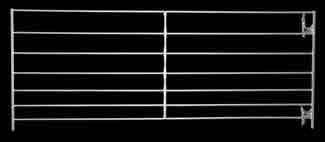

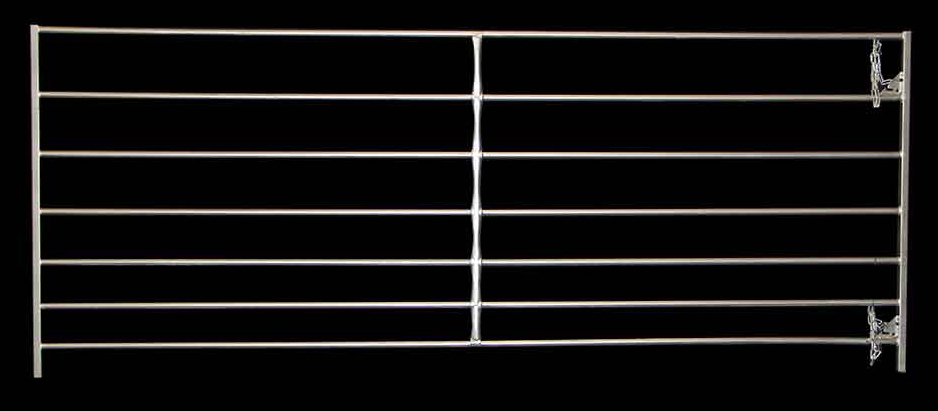

The PG-10 Series is Red River’s go-to panel for sheep, goats, deer areas, and other small livestock. It’s also commonly used for goat roping arenas and light containment setups around the ranch.
Height - 48"
Length - 10'
Legs - 1" square 18 gauge
7 Bars - 1" round 18 gauge saw cut bars
1 Brace - Form Fitted
Mud Leg - No
Approx. Weight - 40 lbs
Key Features - Galvanized, Light Duty Panel
Primary Use - Goat Panels, Sheep Panels, Deer Areas, and Small Livestock Containment
|
(Click on Images to Enlarge)

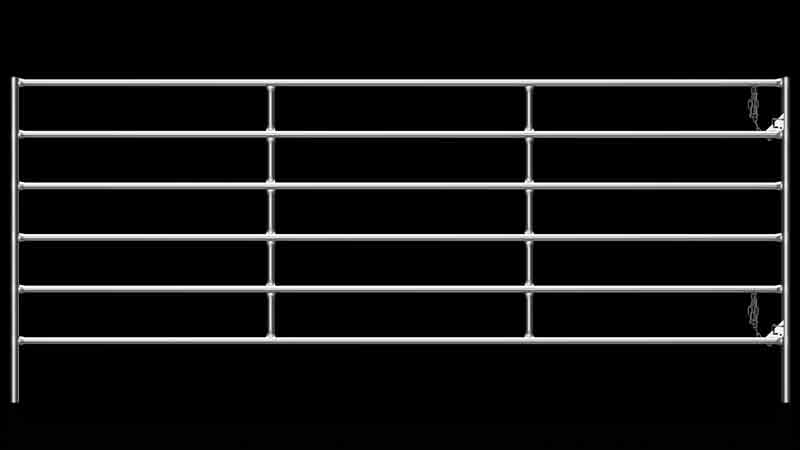

The PEL Series is Red River’s entry-level panel designed for portability and everyday use. Lightweight yet durable, it’s a cost-effective solution for temporary setups, catching pens, feeding areas, and general livestock management.
Built with consistent, high-quality materials (not scrap steel), the PEL panel is ideal for on-the-go use. While not designed for heavy cattle work, it excels as a reliable utility panel for ranchers who need flexibility.
Height - 5'
Length - 10', 12', or 16'
Legs - 1 1/2" Round Tubing 14 ga.
6 Bars - 1 1/4" Round Pinch Cut Tubing 18 ga.
(10') 1 Brace - Form fitted crimped brace
(12') 2 Braces - Form fitted crimped brace
(16') 3 Braces - Form fitted crimped brace
Chain Connection
Mud Leg - No
Approx. Weight - 45 lbs (10')
Approx. Weight - 54 lbs (12')
Approx. Weight - 72 lbs (16')
Key Features - Galvanized, Light Duty Panel
|
(Click on Images to Enlarge)

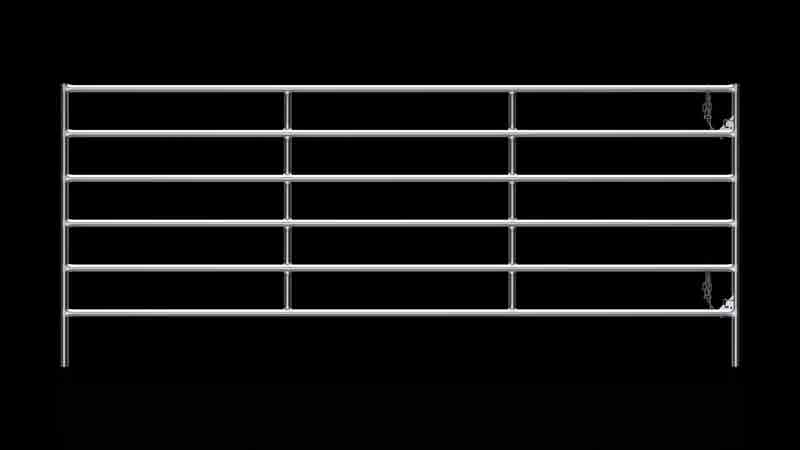

The PEH Series is a heavy-duty economy panel built for strength without the premium price. Designed for ranchers who need durability in high-pressure areas, this panel delivers serious performance.
While classified as an economy panel due to the absence of a shoe and cap, the PEH is built with heavy 1-1/2" tubing and is ideal for working pens, horse stalls, roping arenas, and permanent livestock setups.
Height - 5'
Length - 10', 12', or 16'
Bars - 1-1/2" Round Tubing 14 ga. (6 Bars)
Legs - 1-1/2" Round Tubing 14 ga.
(10') 1 Brace - Form fitted crimped brace
(12') 2 Braces - Form fitted crimped brace
(16') 3 Braces - Form fitted crimped brace
Chain Connection
Mud Leg - No
Approx. Weight - 80 lbs (10')
Approx. Weight - 96 lbs (12')
Approx. Weight - 128 lbs (16')
Key Features - Galvanized, Economy Heavy Panel
Primary Use - Roping Arenas, Round Pens, Working Pens, Horse Stalls, Cattle Working Pens
|
(Click on Images to Enlarge)

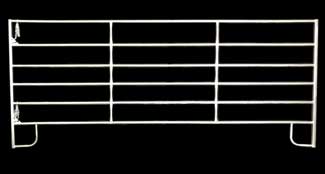

The PL Series is a true lightweight panel that delivers strength beyond expectations. Designed for everyday ranch use, it’s ideal for riding arenas, round pens, and entry-level roping arenas.

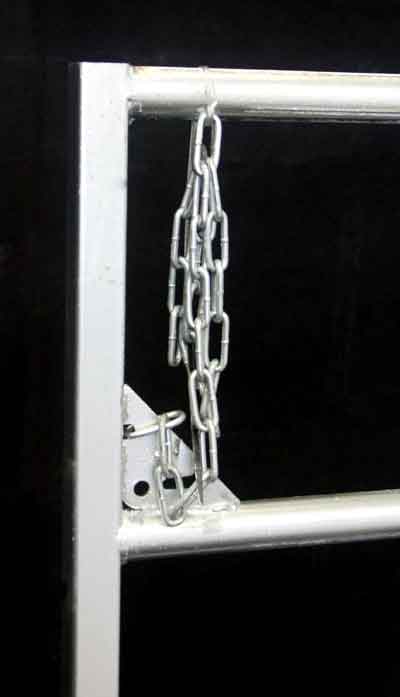

Built with robotic welds for consistency and durability, the PL panel offers a clean finish and reliable performance. Its chain connections allow for easier setup on uneven ground and provide a stronger hold when secured with fencing posts.
Height - 5'
Length - 10', 12', or 16'
Legs - 1 1/4" square tubing 18 ga.
6 Bars - 1 1/4" round tubing 18 ga.
(10') 1 Brace - Form fitted crimped brace
(12') 2 Braces - Form fitted crimped brace
(16') 3 Braces - Form fitted crimped brace
Chain Connection
Mud Leg - Yes
Approx. Weight - 48 lbs (10')
Approx. Weight - 58 lbs (12')
Approx. Weight - 78 lbs (16')
Key Features - Galvanized, Light Duty Panel
Primary Use - Roping Arenas, Riding Arenas, Round Pens
|
(Click on Images to Enlarge)

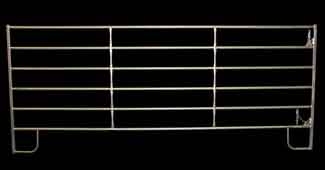

The PM Series is a true medium-duty panel and your entry point into heavy-use applications. Designed for roping arenas, round pens, and working pens, it delivers strength and durability for everyday use.

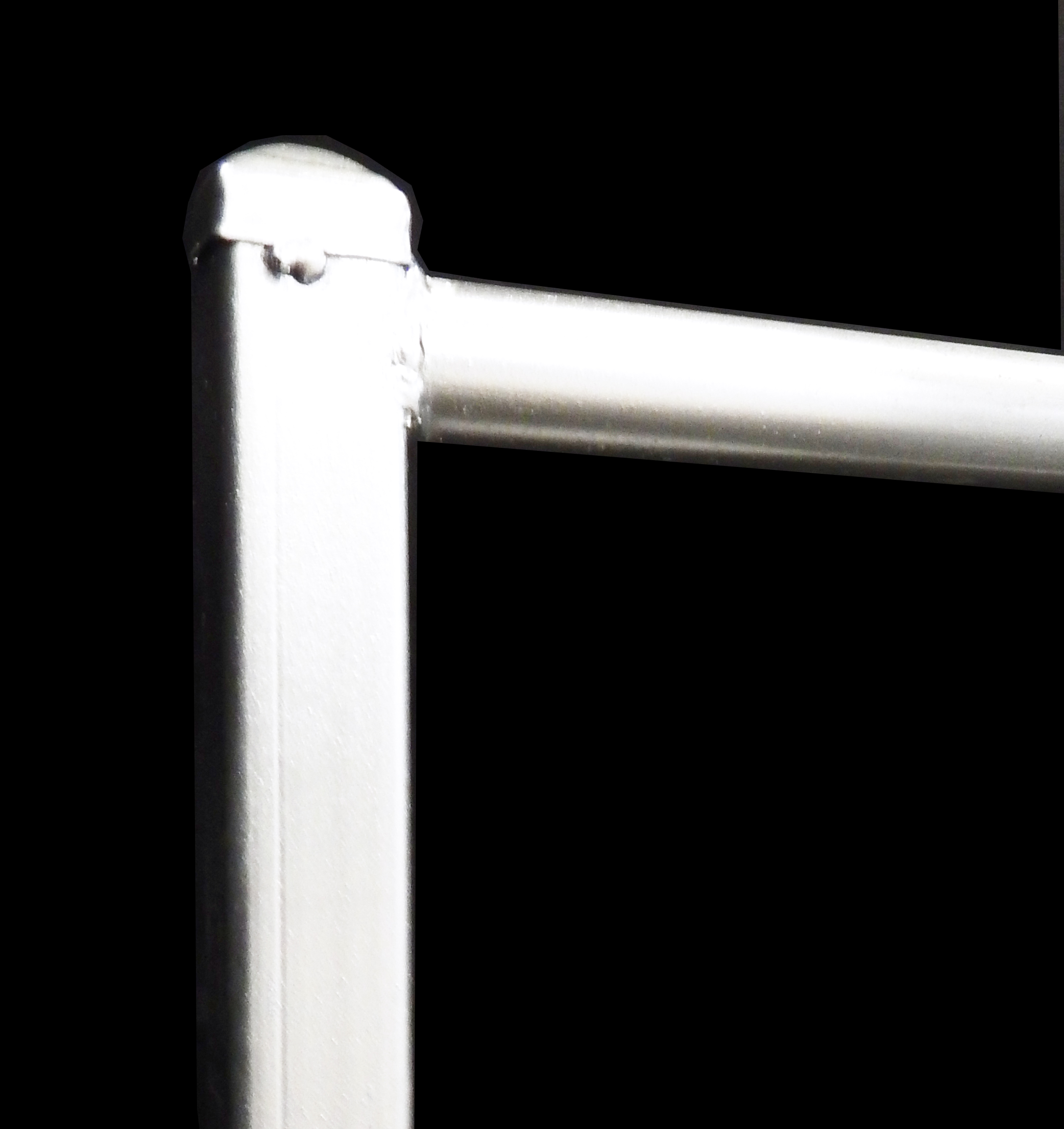

Featuring chain connectors for flexibility on uneven ground and compatibility with fencing posts, the PM panel creates a more secure setup. With saw-cut bars, reinforced bracing, and a welded cap, this panel is built to last in demanding environments.
Height - 5'
Length - 10', 12', or 16'
Legs - 1-1/4" square tubing 18 ga.
6 Bars - 1-1/4" round tubing 16 ga.
(10') 1 Brace - Form fitted crimped brace
(12') 2 Braces - Form fitted crimped brace
(16') 3 Braces - Form fitted crimped brace
Mud Leg - Yes
Approx. Weight - 57 lbs (10')
Approx. Weight - 69 lbs (12')
Approx. Weight - 92 lbs (16')
Key Features - Galvanized, Medium Duty Panel
Primary Use - Team Roping Arenas, Calf Roping Arenas, Round Pens
|
(Click on Images to Enlarge)

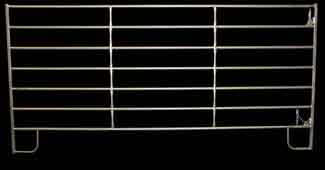

The PMT Series is your 6' tall medium-duty panel, built for added height and control in roping arenas, round pens, and working pens. It delivers the same trusted durability as the PM Series, with additional containment for more demanding setups.
Designed with chain connectors for flexibility on uneven ground and compatibility with fencing posts, the PMT panel creates a stronger, more secure setup. It also serves as the entry-level option for our Level-Up Round Pen systems.
Height - 6'
Length - 10' or 12'
Legs - 1-1/4" square tubing 16 ga.
7 Bars - 1-1/4" round tubing 16 ga.
(10') 1 Brace - Form fitted crimped brace
(12') 2 Braces - Form fitted crimped brace
Mud Leg - Yes
Approx. Weight - 75 lbs (10')
Approx. Weight - 90 lbs (12')
Key Features - Galvanized, Medium Duty Panel
Primary Use - Team Roping Arenas, Calf Roping Arenas, Round Pens
|
(Click on Images to Enlarge)

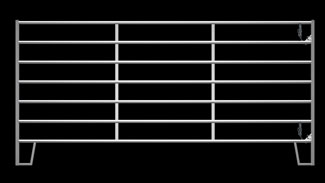

The PH Series is a true heavy-duty livestock panel built for high-pressure environments. Designed for working pens, horse stalls, roping arenas, and permanent livestock setups, it delivers maximum strength and long-term durability.

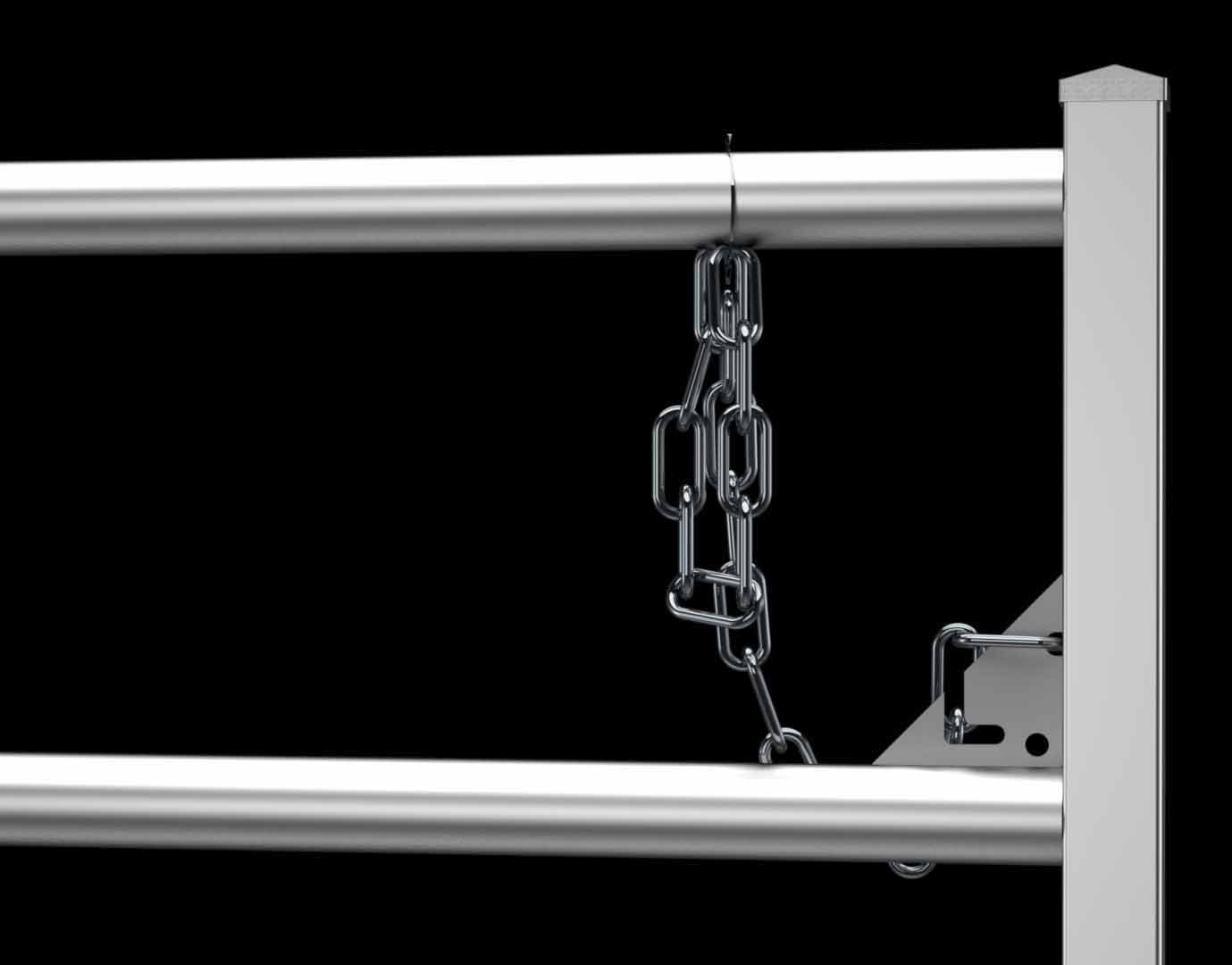

Featuring heavy 1-1/2" tubing, reinforced braces, and chain connectors for flexibility on uneven ground, the PH panel can be upgraded with Red River’s exclusive clamping system to create a more rigid, site-built style arena. Built to handle daily ranch use, this panel is made to last.
Height - 5'
Length - 10', 12', or 16'
Legs - 1-1/2" square tubing 16 ga.
6 Bars - 1-1/2" round tubing 14 ga.
Braces - 1/2" x 1-1/2" flat tubing cope cut 14 ga.
Leg Top - Steel dome cap
Mud Leg - Yes
Approx. Weight - 96 lbs (10')
Approx. Weight - 115 lbs (12')
Approx. Weight - 135 lbs (16')
Key Features - Galvanized, Heavy Duty Panel
Primary Use - Team Roping Arenas, Permanent Livestock Pens, Horse Stalls, Cattle Working Pens
|
(Click on Images to Enlarge)
The PHT Series is a 6' tall heavy-duty livestock panel built for maximum containment and strength. Designed for high-pressure environments like working pens, roping arenas, horse stalls, and turnout areas, it delivers top-tier durability for demanding ranch operations.
Built with heavy 1-1/2" tubing, reinforced braces, and chain connectors for flexibility on uneven ground, the PHT panel can be upgraded with Red River’s exclusive clamping system for added rigidity—creating a more permanent, site-built style setup. This panel is also featured in our Breaking Round Pen.
Height - 6'
Length - 10' or 12'
Legs - 1-1/2" square tubing 16 ga.
7 Bars - 1-1/2" round tubing 14 ga.
Braces - 1/2" x 1-1/2" flat tubing cope cut 14 ga.
Leg Top - Steel dome cap
Mud Leg - Yes
Approx. Weight - 108 lbs (10')
Approx. Weight - 126 lbs (12')
Key Features - Galvanized, Heavy Duty Panel
Primary Use - Team Roping Arenas, Permanent Livestock Pens, Horse Stalls, Cattle Working Pens
|
(Click on Images to Enlarge)

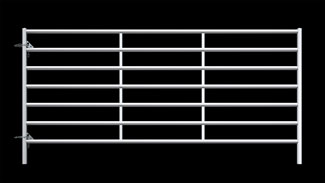

The PBT Series “Bull Tough” panel is built for the toughest jobs on the ranch. Designed for rough stock, high-impact cattle work, and permanent installations, this panel delivers unmatched strength and durability.
Weighing approximately 175 lbs and built with 2" heavy tubing, the PBT is engineered to handle the rankest animals and the harshest conditions. While not designed for portability, it excels as a long-term, heavy-duty solution for serious operations.
Height - 6'
Length - 6', 10', or 12'
Legs - 2" miter cut square tubing 14 ga.
7 Bars - 2" round tubing 13 ga.
Braces - 1/2" x 1-1/2" tubing cope cut 14 ga.
Leg Top - Steel dome cap
Mud Leg - No
Approx. Weight - 175 lbs
Key Features - Galvanized, “Bull Tough” Extreme Heavy Duty Panel
Primary Use - Rough Stock Arenas, Livestock Pens, High-End Roping Arenas, Round Pens
|
Red River Arenas has been manufacturing livestock panels in Texas since 1984.
We use our panels every day in real ranch, livestock, and rodeo settings, so we understand what it takes to build a dependable panel. With over 150 years of combined experience, we can help recommend the right panel for your setup.
Our portable horse fencing and livestock panels can be used for horse stalls, working cattle systems, cattle equipment, roping arenas, riding arenas, and round pens. Red River’s heavy-duty horse and cattle panels are some of the heaviest and most economical options on the market for rough stock arenas.
All cattle and horse panel packages are priced with FREE DELIVERY included. Quantity discounts are also available in our round pen and roping arena package deals.
The Difference Between Paint / Powder Coating and Galvanized Steel
Paint / Powder Coating creates a surface barrier over the steel. As long as that finish stays intact, it can provide protection. But once the coating is scratched, chipped, or worn through, the exposed steel can begin to rust quickly.
Galvanized steel is coated with zinc to help prevent rust and corrosion. Even if the surface gets scratched or abraded, the steel still has added protection. That makes galvanized panels a lower-maintenance, longer-lasting option for ranch, livestock, and arena use.
