Overall Height - Matches 5' Tall PH Panels
Gate Arch Height - 9'

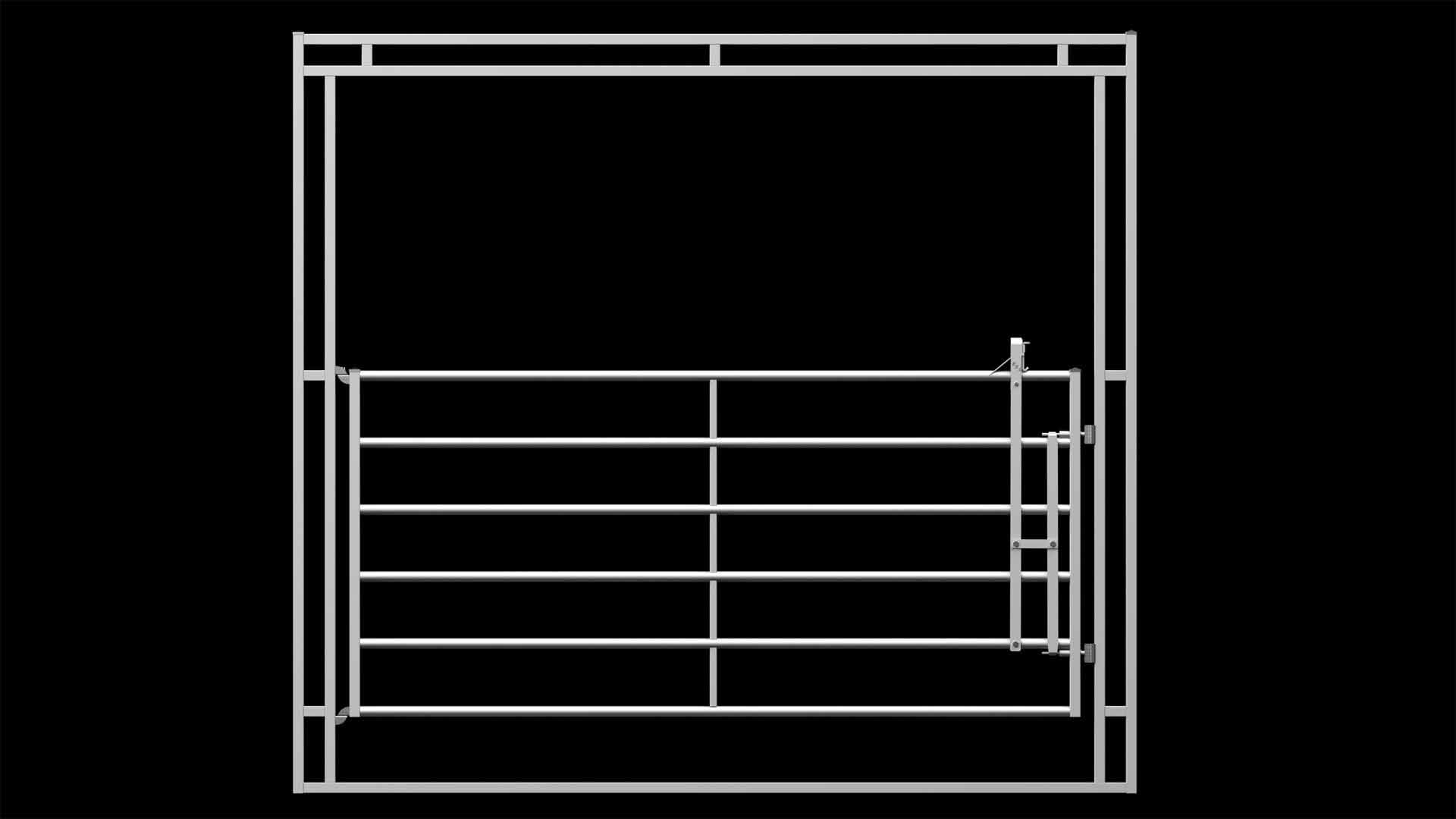

Available Widths - 6' and 10'
Legs - 1-1/2" Square Tubing 14ga.
6 Bars - 1-1/2" Round Tubing 14ga.
Braces - 1/2" x 1-1/2" Tubing Cope Cut 14 Gauge
Leg Top - Steel Dome Cap
Approx. Weight - WH06: 140 lbs
Approx. Weight - WH10: 225 lbs
Key Features - Galvanized, Heavy-Duty Construction
Primary Use - Team Roping Arenas, Permanent Livestock Pens, Horse Stalls, Cattle Working Pens

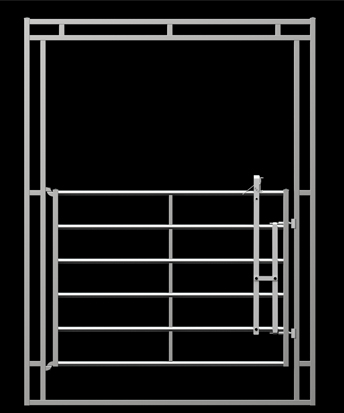

Designed to match PH Series Panels. WH walk thru gates provide convenient personnel access while maintaining the strength and appearance of a complete PH panel system.

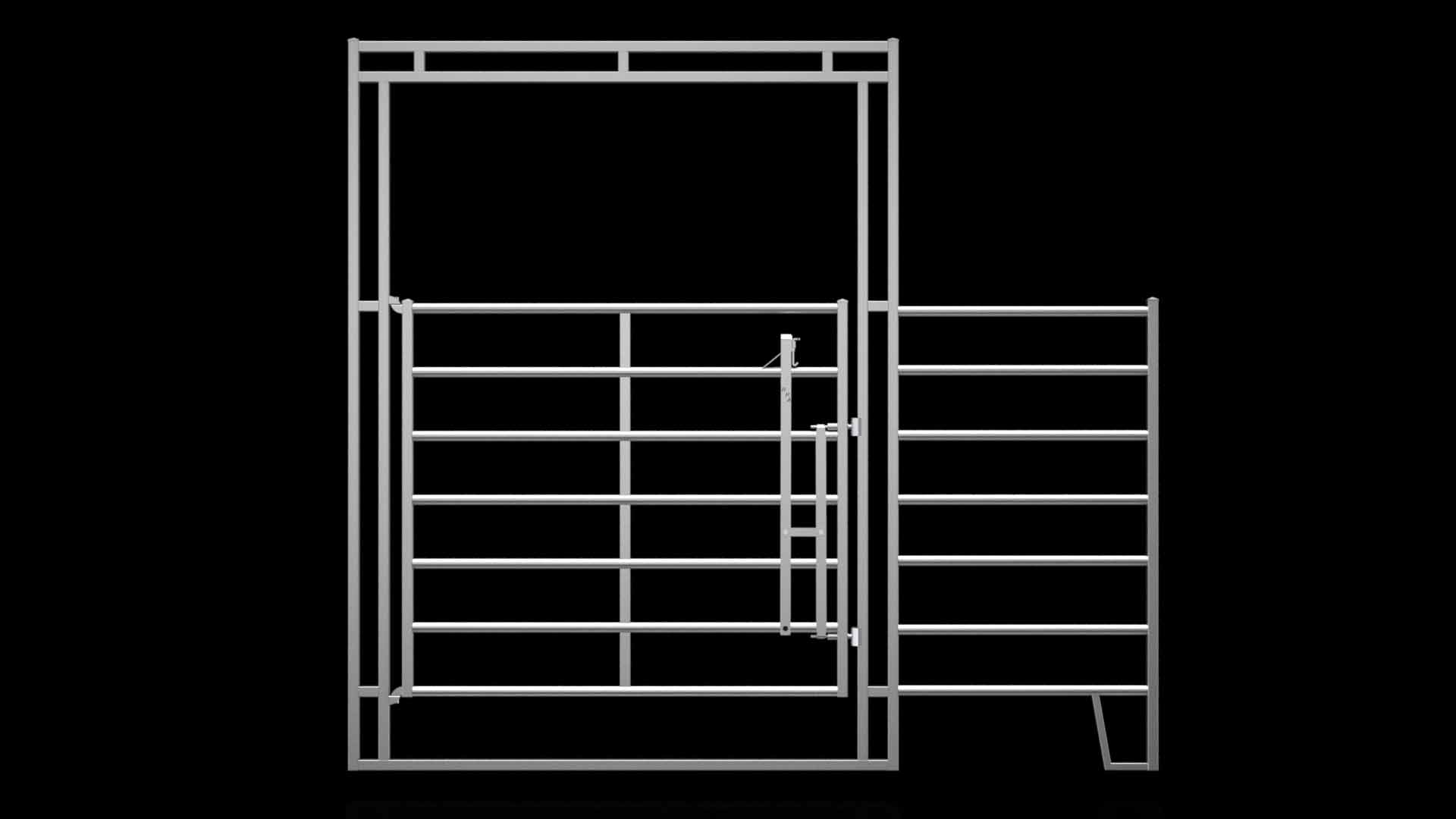

The WH Walk Thru Combo Gate combines a 6' walk thru gate with a welded panel section, creating a complete gate assembly that matches PH Series Panels. Combo gates are commonly used in horse stalls, livestock pens, cattle working facilities, and arena systems where a walk thru gate and adjoining panel section are needed in a single unit.
Gate Sizing Note: Combo gate model numbers reflect the overall length of the complete assembly measured from outside of frame to outside of frame.
WH06-10 = 6' Walk Thru Gate with 4' Panel Section (10' Overall Length)
WH06-12 = 6' Walk Thru Gate with 6' Panel Section (12' Overall Length)
Galvanized Construction
Matches PH Series Panels
1-1/2" Square Legs with Steel Dome Caps

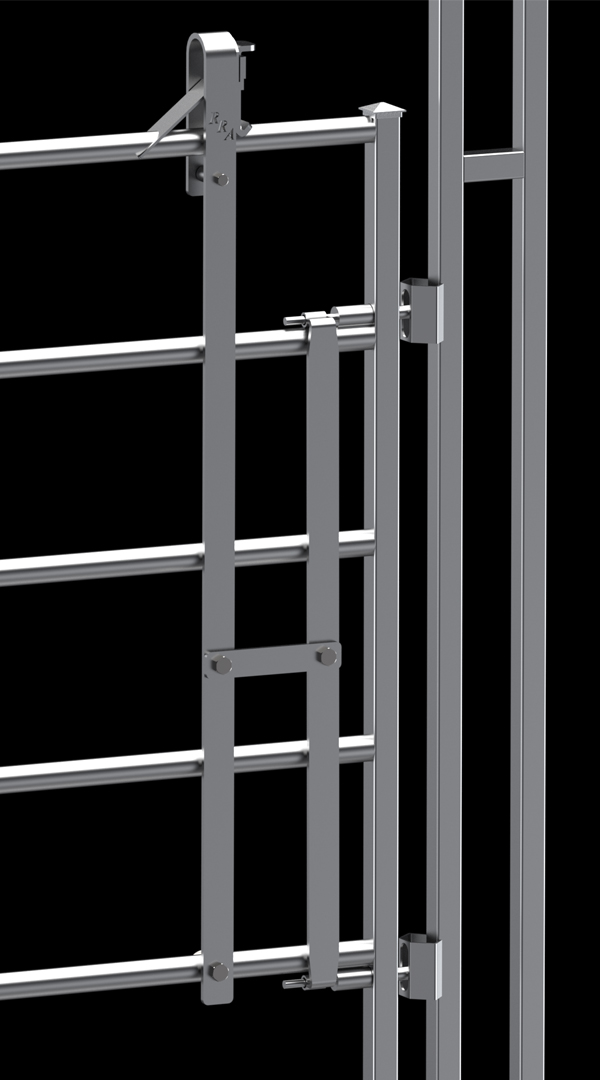

Heavy-Duty Latch Included
Approx. Weight - WH06-10: 185 lbs
Approx. Weight - WH06-12: 195 lbs
GH Series Gates are traditional galvanized pasture gates that can be used with PH panel systems when permanent posts are available. Unlike WH walk thru gates and combo gates, GH gates are standalone gates and require customer-supplied posts for installation.
Available Lengths - 6', 10', 12', and 16'
Legs - 1-1/4" Square Tubing 14ga.
6 Bars - 1-1/4" Round Tubing 14ga.
Steel Pressed Leg Caps
Galvanized Construction
Heavy-Duty Pasture Gate Design
Chain Latch Included
Customer Supplies Posts
Common Uses: Pastures, Property Entrances, Livestock Pens, Working Facilities, and Arena Access Gates
The gates on this page are designed to match PH Series Panels. PH panels feature 1-1/2" square legs with steel dome caps, galvanized construction, and a 5' overall height.
Gate Sizing Note: Red River gate model numbers reflect the overall gate width measured from outside of frame to outside of frame. Actual gate openings will be smaller than the listed gate size.
Compatible Panels: PH10, PH12, and PH16
WH walk thru gates and combo gates are specifically designed to match PH Series Panels. Their heavy-duty construction makes them ideal for team roping arenas, livestock pens, cattle working facilities, horse stalls, and other applications requiring a durable 5' tall panel system.
