Overall Height - Matches 5' Tall PL and PM Panels
Gate Arch Height - 9'
Available Widths - 6' and 10'
Legs - 1-1/4" Square Tubing 18ga.
6 Bars - 1-1/4" Round Tubing 16ga.
Steel Dome Caps
Approx. Weight - WM06: 125 lbs
Approx. Weight - WM10: 225 lbs
Key Features - Galvanized, Medium-Duty Construction
Primary Use - Horse Training Facilities, Livestock Pens, Horse Stalls, Riding Arenas, and General Ranch Use
Designed to match PL and PM Series Panels. WM walk thru gates provide convenient personnel access while maintaining the strength and appearance of a complete panel system.
Panel Match Note: WM gates are designed to match PL and PM Series Panels.
The WM Walk Thru Combo Gate combines a 6' walk thru gate with a welded panel section, creating a complete gate assembly that matches PL and PM Series Panels. Combo gates are commonly used in horse stalls, livestock pens, round pens, riding arenas, and ranch applications where a walk thru gate and adjoining panel section are needed in a single unit.
Gate Sizing Note: Combo gate model numbers reflect the overall length of the complete assembly measured from outside of frame to outside of frame.
WM06-10 = 6' Walk Thru Gate with 4' Panel Section (10' Overall Length)
WM06-12 = 6' Walk Thru Gate with 6' Panel Section (12' Overall Length)
Galvanized Construction
Matches PL and PM Series Panels
1-1/4" Square Legs 18ga.
1-1/4" Round Rails 16ga.
Steel Dome Caps

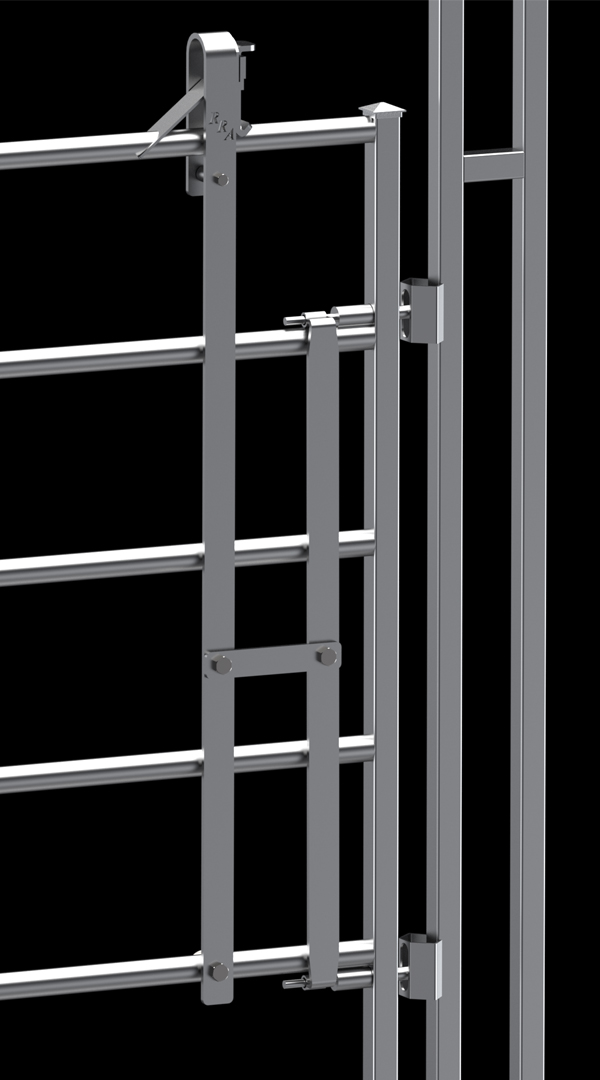

Heavy-Duty Latch Included
Approx. Weight - WM06-10: 220 lbs
Approx. Weight - WM06-12: 225 lbs

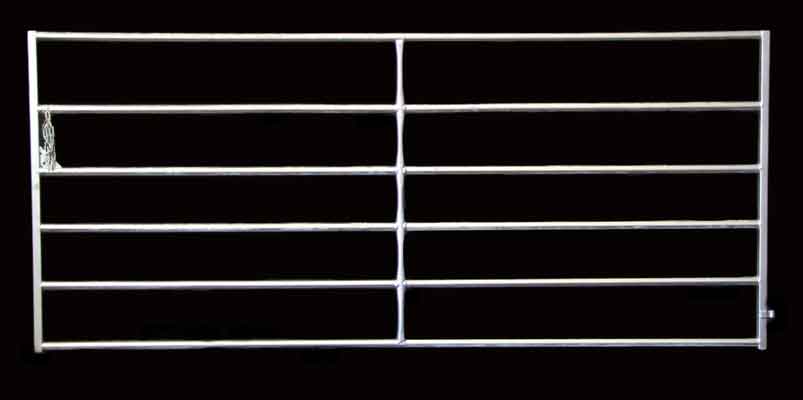

GL Series Gates are traditional galvanized pasture gates that can be used with PL and PM panel systems when permanent posts are available. Unlike WM walk thru gates and combo gates, GL gates are standalone gates and require customer-supplied posts for installation.
Available Lengths - 6', 10', 12', and 16'
Legs - 1-1/4" Square Tubing 16ga.
6 Bars - 1-1/4" Round Tubing 16ga.
Steel Pressed Leg Caps
Crimp Brace Construction
Galvanized Construction
Chain Latch Included
Customer Supplies Posts
Common Uses: Pastures, Property Entrances, Livestock Pens, Working Facilities, and Arena Access Gates
The gates on this page are designed to match PL and PM Series Panels. These panel systems feature 1-1/4" square legs, galvanized construction, and a 5' overall height.
Gate Sizing Note: Red River gate model numbers reflect the overall gate width measured from outside of frame to outside of frame. Actual gate openings will be smaller than the listed gate size.
Compatible Panels: PL10, PL12, PL16, PM10, PM12, and PM16
WM walk thru gates and combo gates are specifically designed to match PL and PM Series Panels. Their galvanized construction and capped-leg design make them ideal for horse facilities, livestock pens, round pens, riding arenas, and general ranch applications.
For installations using permanent posts, GL Series Pasture Gates are also compatible with PL and PM panel systems.
