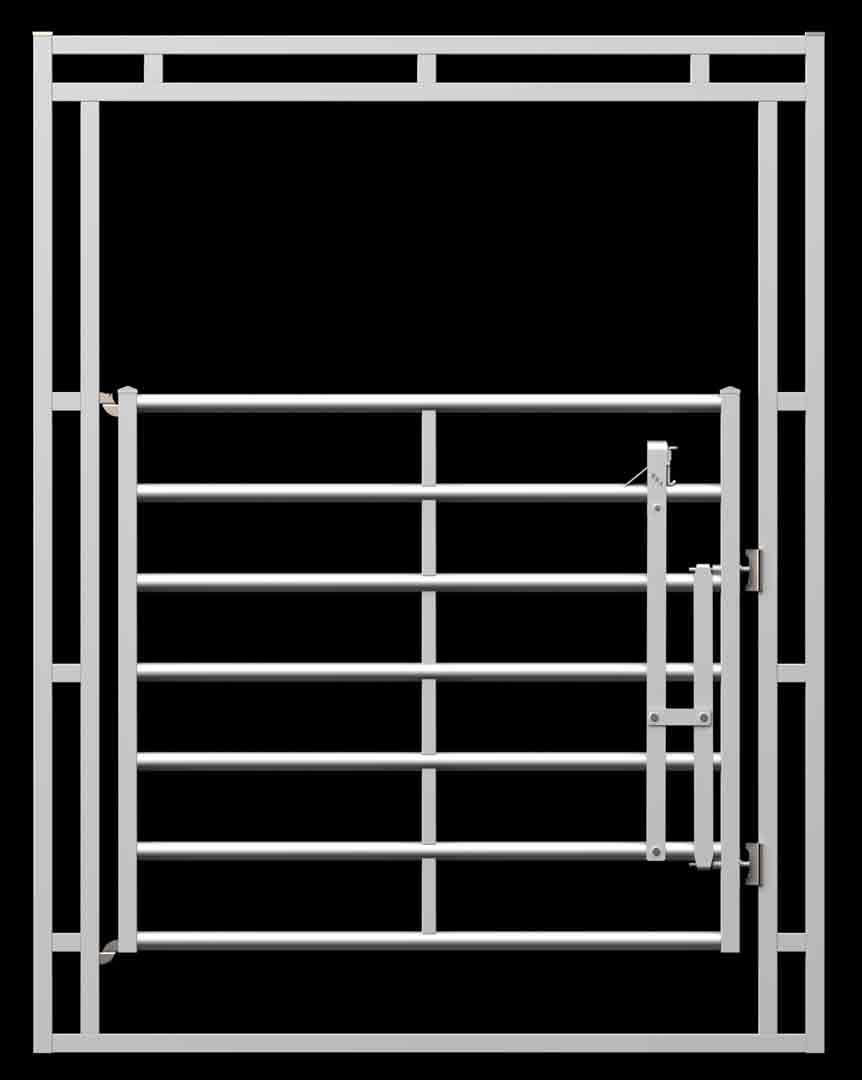

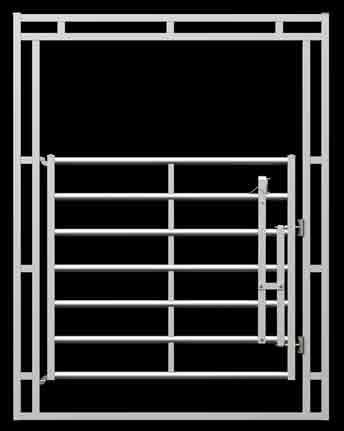

Gate Height - 6'
Gate Arch Height - 9'
Available Widths - 6', 8', and 10'
Legs - 2" Square Tubing 14ga.
Gate Leg Top - Steel Dome Cap
7 Bars - 2" Round Tubing 13ga.
Braces - 1/2" x 1 1/2" Tubing Cope Cut 14 Gauge
Approx. Weight - 6' Gate: 250 lbs; 10' Gate: 300 lbs
Key Features: Galvanized, Bull Tough Extreme Heavy Duty Construction
Primary Use: Rough Stock Arenas, Cattle Working Pens, Livestock Pens, Upper-End Roping Arenas, and Round Pens
The WBT Walk Thru Combo Gate combines a 6' walk thru gate with a welded panel section, creating a complete gate assembly that matches PBT Series Panels. Combo gates are commonly used in cattle working pens, livestock holding pens, rough stock facilities, and arena systems where a walk thru gate and adjoining panel section are needed in a single unit.
Gate Sizing Note: Combo gate model numbers reflect the overall length of the complete assembly measured from outside of frame to outside of frame.

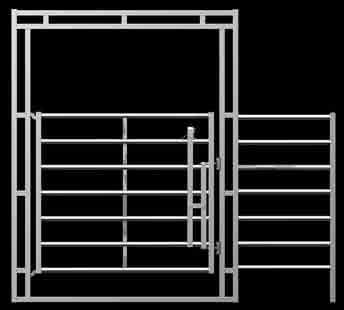

WB06-10T = 6' Walk Thru Gate with 4' Panel Section (10' Overall Length)
WB06-12T = 6' Walk Thru Gate with 6' Panel Section (12' Overall Length)
Galvanized Construction
Matches PBT Series Panels
2" Square Legs with Steel Dome Caps

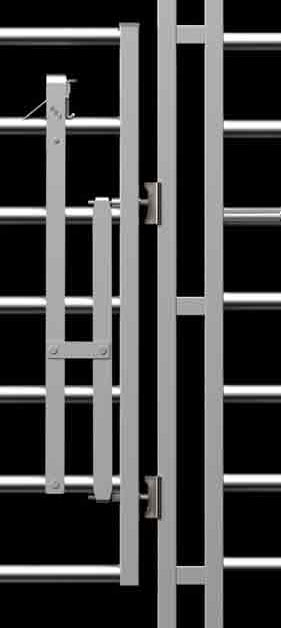

Heavy-Duty Chain Latch Included
Approx. Weight - WB06-10T: 320 lbs
Approx. Weight - WB06-12T: 350 lbs
GH Series Gates are traditional galvanized pasture gates that can be used with PBT panel systems when permanent posts are available. Unlike WBT walk thru gates and combo gates, GH gates are standalone gates and require customer-supplied posts for installation.
Available Lengths - 10', 12', and 16'
Galvanized Construction
Heavy-Duty Pasture Gate Design
Chain Latch Included
Customer Supplies Posts
Common Uses: Pastures, Property Entrances, Livestock Pens, Working Facilities, and Arena Access Gates
The gates on this page are designed to match PBT Series Panels. PBT panels are our heaviest-duty panel system and feature 2" square legs with steel dome caps, galvanized construction, and a 6' overall height.
Gate Sizing Note: Red River gate model numbers reflect the overall gate width measured from outside of frame to outside of frame. Actual gate openings will be smaller than the listed gate size.
Compatible Panels: PBT10 and PBT12
WBT walk thru gates and combo gates are specifically designed to match PBT Series Panels. Their heavy-duty construction makes them ideal for rough stock arenas, cattle working pens, livestock handling facilities, and premium arena systems.
